5 Star Carpet Soil Extractor

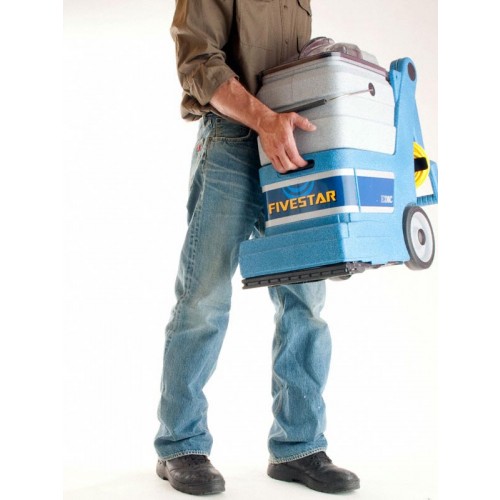

All in one cleaner that’s

easy to load and unload

into most vehicles

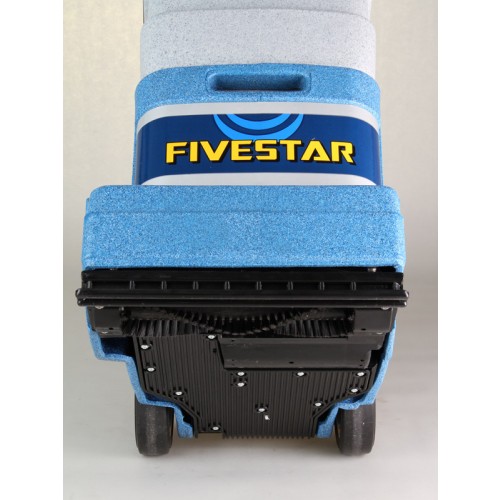

Self-adjusting, self-leveling brush and vacuum shoe for easy cleaning of all carpet lengths, plus longer brush life.
Stair/upholstery kit attaches to back of unit for confined area cleaning.

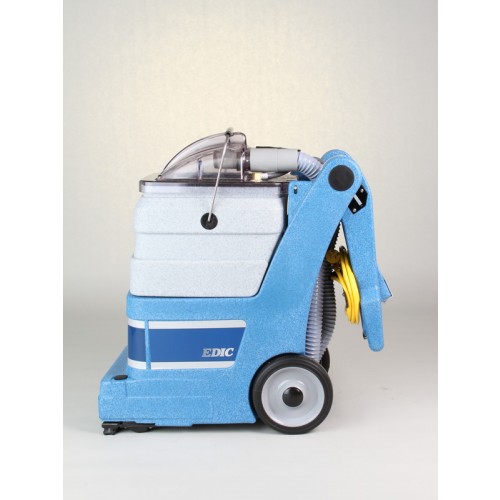

Handle adjusts to operator height and folds down for easy storage and transportation.

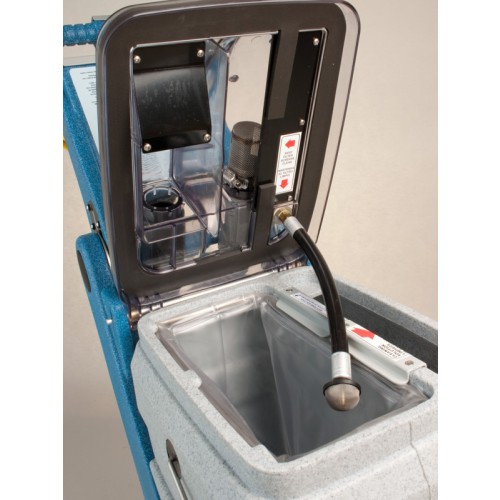

Patented lift-off bucket with bladder makes filling and emptying incredibly easy.
See-through recovery dome.
Side extension for cleaning right to baseboards.
Upright-mounted motor and intercooler system combine for long-lasting operation.
Remove two screws and the machine opens like a clamshell for fast service.
Uses Deltaquip’s own Xtract-a-way shampoo formulated exclusively for Rental Stores.

Model/Cat. Number:	Five Star/401TR
Capacity/Power:	3 US Gallon Polyethylene tank (11.37 litres) / 115v, 12Amp draw
Vacuum Motor Specs:	2 horsepower / 112 C.F.M. / 107″ water lift
Pump hp/Pressure:	1/6hp / 50 psi
Cleaning Width:	12”
Brush Motor/Speed:	1/6 hp / 2500 rpm
Brush Type:	Chevron design, 4 rows, Stainless steel sealed ball bearings
Wheels:	7″ non-marking
Power Cord:	25 feet (7.7 meters)
Dimensions (LxWxH):	25 x 13 x 26¾” (63½ x 33 x 68cm)
Shipping Dimensions:	26½ x 15½ x 28¼” (67½ x 39½ x 72cm)
Weight:	40 lbs (18 Kg)
Shipping Weight:	53 lbs (24 Kg)
Warranty:	2 years parts and labour, lifetime on housing
