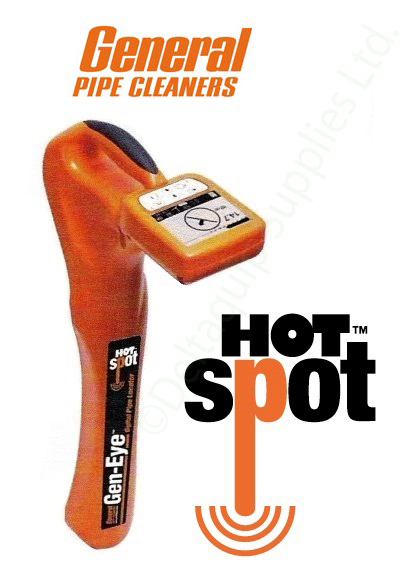

Gen-Eye Hot Spot™

Gen-Eye Hot Spot™





With the ability to locate water lines, gas lines and more, the Gen-Eye Hot Spot™ Digital Pipe Locator can locate cast iron pipe down to 10 feet and plastic and clay pipe to 20 ft.





  • High tech digital technology that tells you exactly where the pipe is and how deep
  • 100 sensitivity levels let you hone in on the transmitter’s signal
  • Signal strength read-out, graphic display and audible tone
  • Digital depth indicator as well as battery status indicator
  • Built-in four-way signal finder lets you locate almost anything underground from cables to water lines
  • Seeks the 512Hz signals transmitted from Gen-Eye­™ cameras
  • Total field antenna
  • Line location compass
  • Transmits four frequencies to make pin location easier

Model: GL100
Power Source: 6 – C batteries
Battery Life Expectancy: 50 Hrs. @ 68°F
Dynamic Range: 96 dB
Depth Range: 20 feet (6m) in polyethylene and clay, 10 feet (3m) in cast iron pipe
Operating Modes/Frequency: Camera Locator/512 Hz and 874 Hz, Pipe Locator/65 KHz, Power Line Locator/60 Hz
Indicators: Backlit LCD digital display with signal strength read-out, graphic display, audible tone, digital depth indicator, battery status
Use With: General Pipe Cleaners’ 5 watt transmitter Model GL-175
Dimensions (LxWxH): T.B.A.
Shipping Dimensions: Approx. 30x12x12″ (76x31x31cm)
Weight: 5 Lbs (2¼Kg)
Shipping Weight: 6 lbs. (2¾Kg)
Warranty: 1 year parts and labour
