8E Series Effluent Pumps

8E Series Effluent Pumps

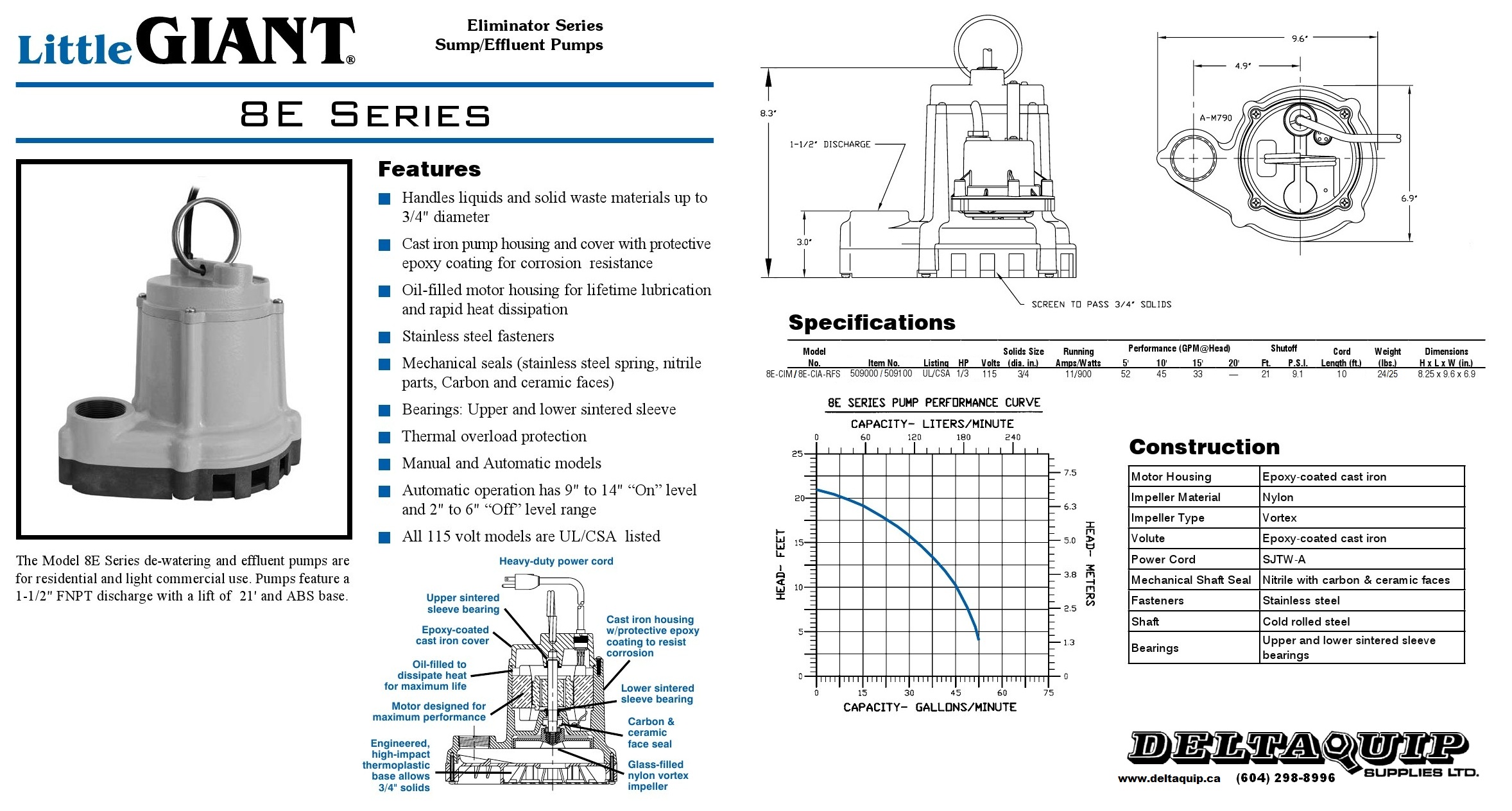

The 8E Series pumps handle up to 43 Imperial gallons per minute…2600 gallons per hour.





  • Choose between manual (8E-CIM) or switchable (8E-CIA-RFS) models.
  • 1¼” adapters available.
  • Fully sealed, serviceable motor designed for continuous duty.
  • Epoxy coated cast aluminum housing with vortex nylon impeller.
  • Cast iron volute.
  • Solids handling up to ¾” (19mm).
  • Upper and lower sintered sleeve bearings.

Model (Catalogue #) and Type:    8E-CIM (509000) Manual; 8E-CIA-RFS (509100) Manual with float switch          Capacity (Imp. GPH / l/hr):             2600 @5’ head  (11,824 l@1½m) or 300 @20’ height  (1360 l@6m)           Discharge:                                       1½”FNPT (38mm)
On Level:                                           8E-CIM – Continuous; 8E-CIA-RFS – 9-14″ (23-35¾cm)                                                    Off Level:                                           8E-CIM – Continuous; 8E-CIA-RFS – 2-6″ (5-15¼cm)                                                Shut-Off (max pump height):        21’(6.4m)                                                                                                                    Maximum Liquid Temperature:   140°F (60°C)
Maximum Pump Pressure:           9.1 p.s.i.                                                                                                                                 Motor hp/volts:                                 1/3hp, 11Amp, 115V sealed, 900 Watt, CSA approved
Cord Length:                                     10′ (3m)
Warranty:                                           1 year from Deltaquip’s invoice date
Dimensions (L x W x H):                 9½ x 7 x 8¼” (24 x 18 x 21cm)
Shipping Dimensions:                     12¾ x 10 x 11″ (32½ x 25½ x 28cm)
Weight:                                                8E-CIM – 24 lbs (11Kg); 8E-CIA-RFS – 25 lbs (11.36Kg)
Shipping Weight:                               8E-CIM – 25½ lbs (11.6Kg); 8E-CIA-RFS – 26½ lbs (12Kg)
