4E-34NT & 4E-34NR

4E-34NT & 4E-34NR



For water transfer,

  water displays

and machine tool

      coolants



  • Most commonly used with water displays air conditioners and machine tool coolants.
  • Handles a variety of liquids.
  • Oil-filled motor housing with a Viton® shaft seal, designed for continuous duty.
  • Commercial, industrial or residential use, where lesser amounts of liquid must be transferred or recirculated.
  • Removable polypropylene screen for easy cleaning.
  • Epoxy coated cast aluminum housing and cover.
  • Nylon volute and impeller.
  • Model 4E-34NR has a heavy duty motor.

Model/Catalogue Number: 4E-34NT (504186)   4E-34NR (504203)
Motor Specs: 1/12HP, 115V, 3½ Amp, 210 Watt, Thermally protected, CSA approved

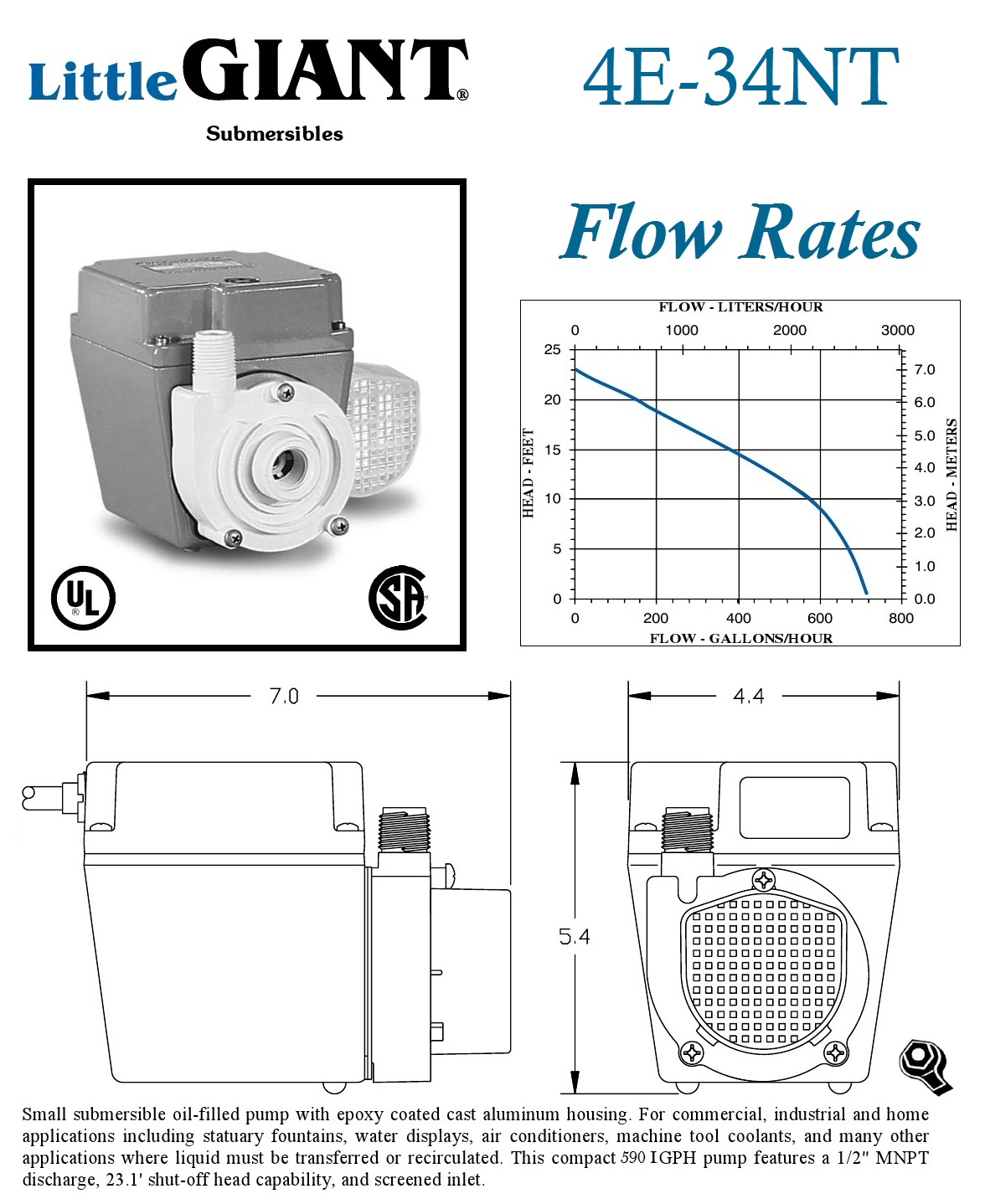

Capacity (GPH-litres/hr): 4E-34NT – 590 @1’ head (2688 l@.3m)   4E-34NR – 675 @ 1′ head (3066 l@.3m)
Intake: ¾” (19mm)FNPT
Discharge: ¼”MNPT (6mm)
Shut Off (max head): 4E-34NT – 23.1 ft (7m)  4E-34NR – 24½’ (7.5m)
Pump Pressure: 4E-34NT – 10 p.s.i   4E-34NR – 10.6 p.s.i.
Maximum Liquid Temp: 120°F (49°C)
Power Cord: 4E-34NT – 10′ (3m)    4E-34NR – 6′ (1.8m)
Dimensions (LxWxH): 7 x 4½ x 5½” (18 x 11½ x 14cm)
Shipping Dimensions: 8¾ x 6½ x 6½” (22¼ x 16½ x 16½cm)
Weight: 8½ lbs (.4Kg)
Shipping Weight: 8¾ lbs (4Kg)
Warranty: 1 year from Deltaquip’s invoice date
