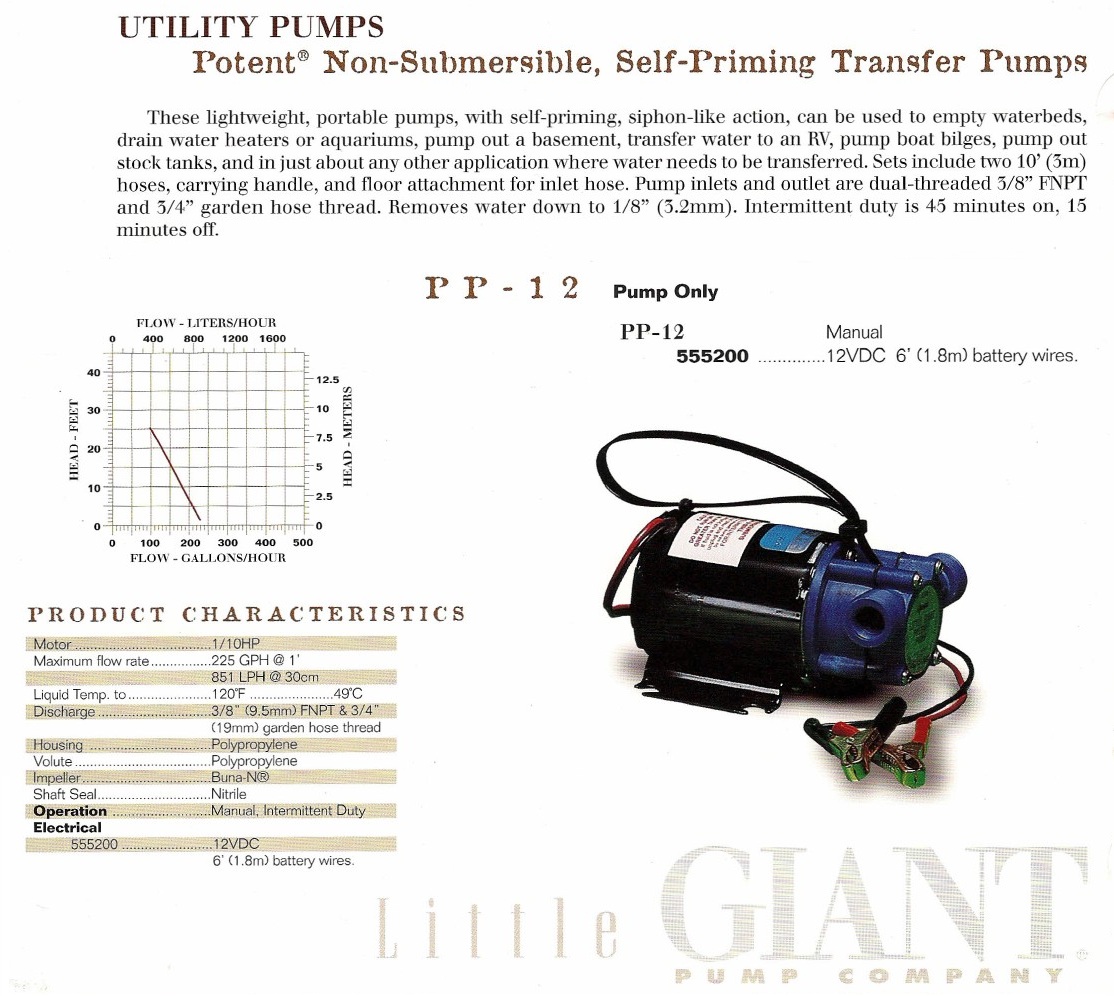

12 Volt Utility Pump

12 Volt DC power

for boats and R.V.’s

Most commonly used in R.V.’s and boats, to drain tubs, and other small contained areas.
Pumps solutions non-harmful to rubber.
Non-submersible polypropylene pump body.
Polypropylene cam, Buna-N® compounded rubber impeller.
Commercial, industrial or residential use, where lesser amounts of liquid must be transferred.
Battery cable and clips included.
Self priming once impeller is wet.
Lifts liquids from 7 feet below.
Dual threaded ports each with both ¾” (19mm) male garden hose thread & 3/8″ (9½mm)FNPT.
Rubber feet maintain stability when in operation.
Designed to run intermittently; 45 min. on, 15 min. off.

Model/Catalogue Number:	PP-12 (555200)
Motor Specs:	1/10HP, 12VDC, 8.9A, 107 Watt
Motor Speed:	5,000 RPM

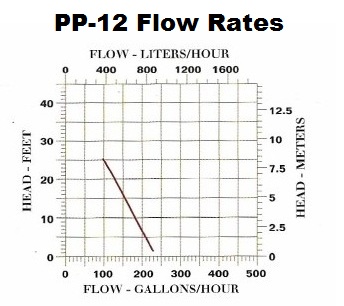

Capacity (GPH-liters/hr):	187 @1’ head (851 l@.3m)
Discharge:	¾” male garden hose integrated with 3/8″ (9½mm)FNPT
Shut Off (max head):	25 ft (7.6m)
Pump Pressure:	20.9 p.s.i.
Maximum Liquid Temp:	120°F (49°C)
Power Cord:	6′ (1.8m) battery wires
Dimensions (LxWxH):	6.1 x 4 x 3.1″ (15½ x 10 x 8cm)
Shipping Dimensions:	9¾ x 5¼ x 5-1/8″ (25 x 13½ x 13cm)
Weight:	5.1 lbs (2.3Kg)
Shipping Weight:	5½ lbs (2.5Kg)
Warranty:	1 year from Deltaquip’s invoice date
