Chain Drive Wallboard Lift

• Designed to reach up to 14½ feet or up to 15′ 11″ when used with 18″ extension
• Easy to operate winch with torque limiter
• 6″ diameter heavy duty casters

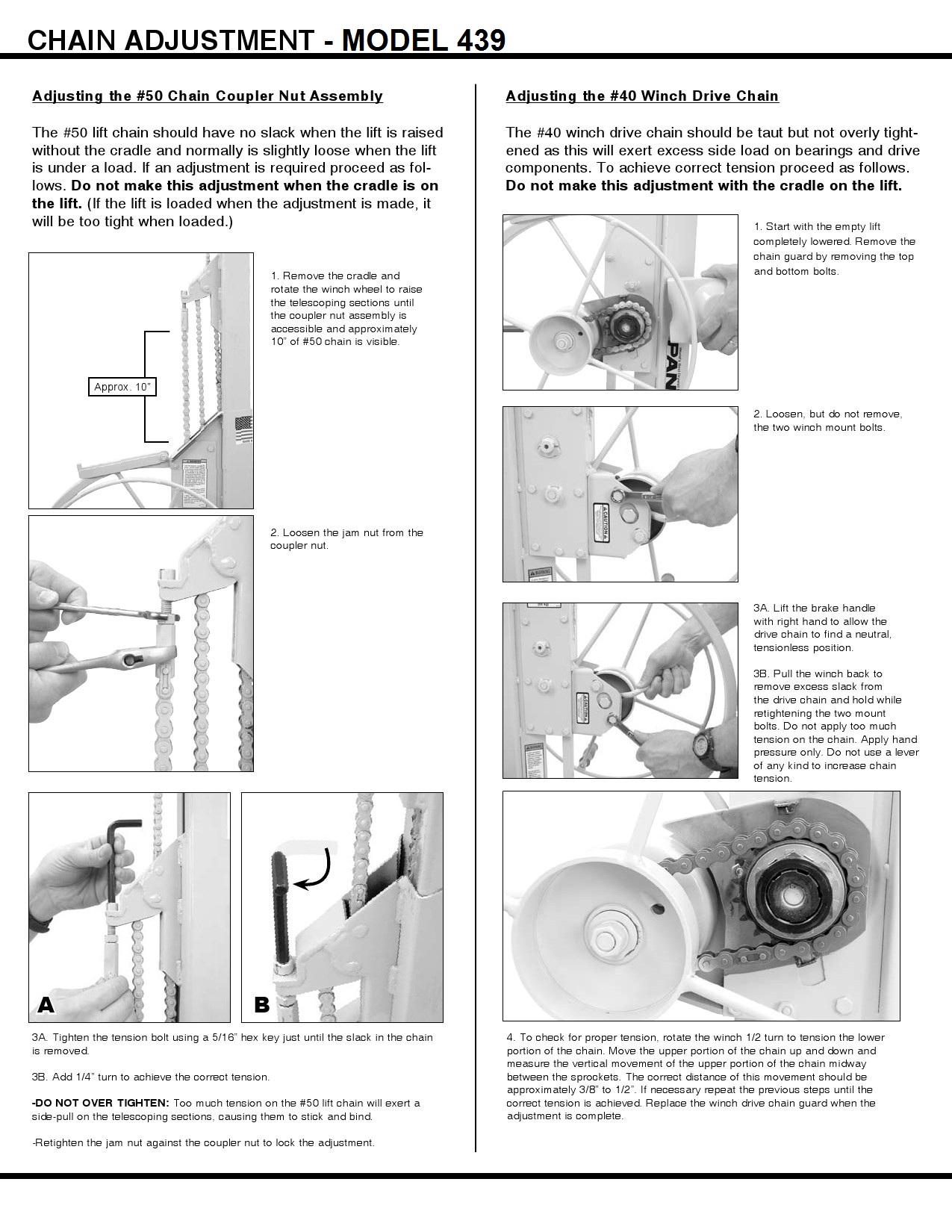

• Solid steel frame with dependable multi-stage chain
• Vinyl end caps help prevent material from damage during transport
• Backstop keeps tripod assembly in place during the lifting process
• Cradle tilts laterally 65° for installation on walls and sloped ceilings
• Adjustable cradle extensions accommodate various wallboard configurations
• Collapses for transport in most car trunks

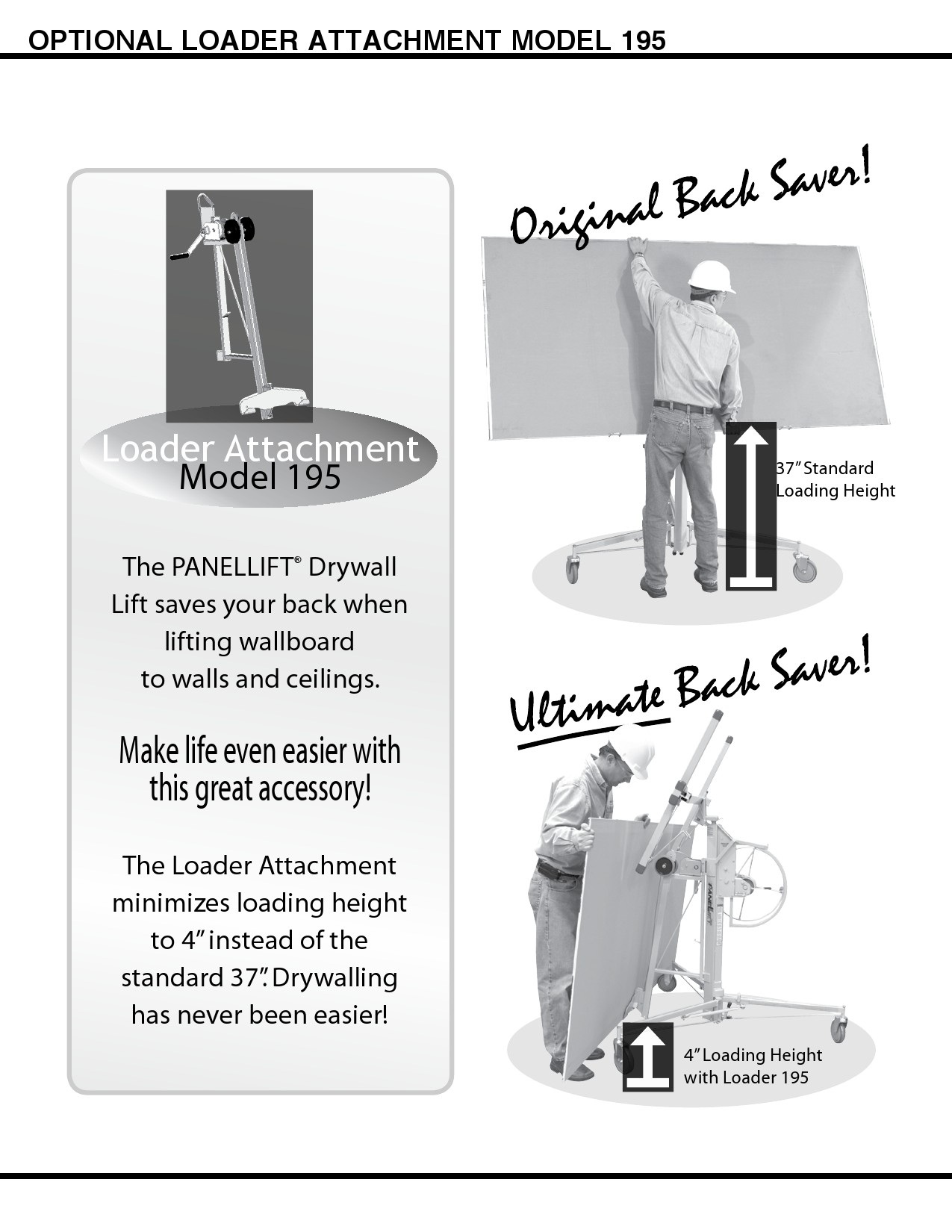

• Low 35″ load height or only 4″ with the model 195 Loader Attachment

Model:                                                   439
Weight Lifting Capacity:                   150 lbs. (68 Kg.)
Casters:                                                3 – 6″ diameter heavy dutys
Mechanical System:                          Manual winch with torque limiter, multi-stage chain
Loading Height (from floor):             35″ (89cm) or 4″ (10cm) with loading attachment
Cradle Length:                                     Minimum 48″ (122cm), maximum 114″ (290cm)
Dimensions:                                         Caster to caster – 53″ (135cm); Cradle height from floor – 56″ (142cm)
Shipping Dimensions (LxHxW):      Box 1 (contains mast) 49½ x 7¼ x 20¾” (126 x 18½ x 53cm)
                                                                Box 2 (contains base and cradle) 49½ x 7¼ x 15½” (126 x 18½ x 39½cm)
Weight:                                                 124 lbs. (56½Kg)
Shipping Weight:                                153 lbs. (69½Kg)
Warranty:                                              3 year on drive train
