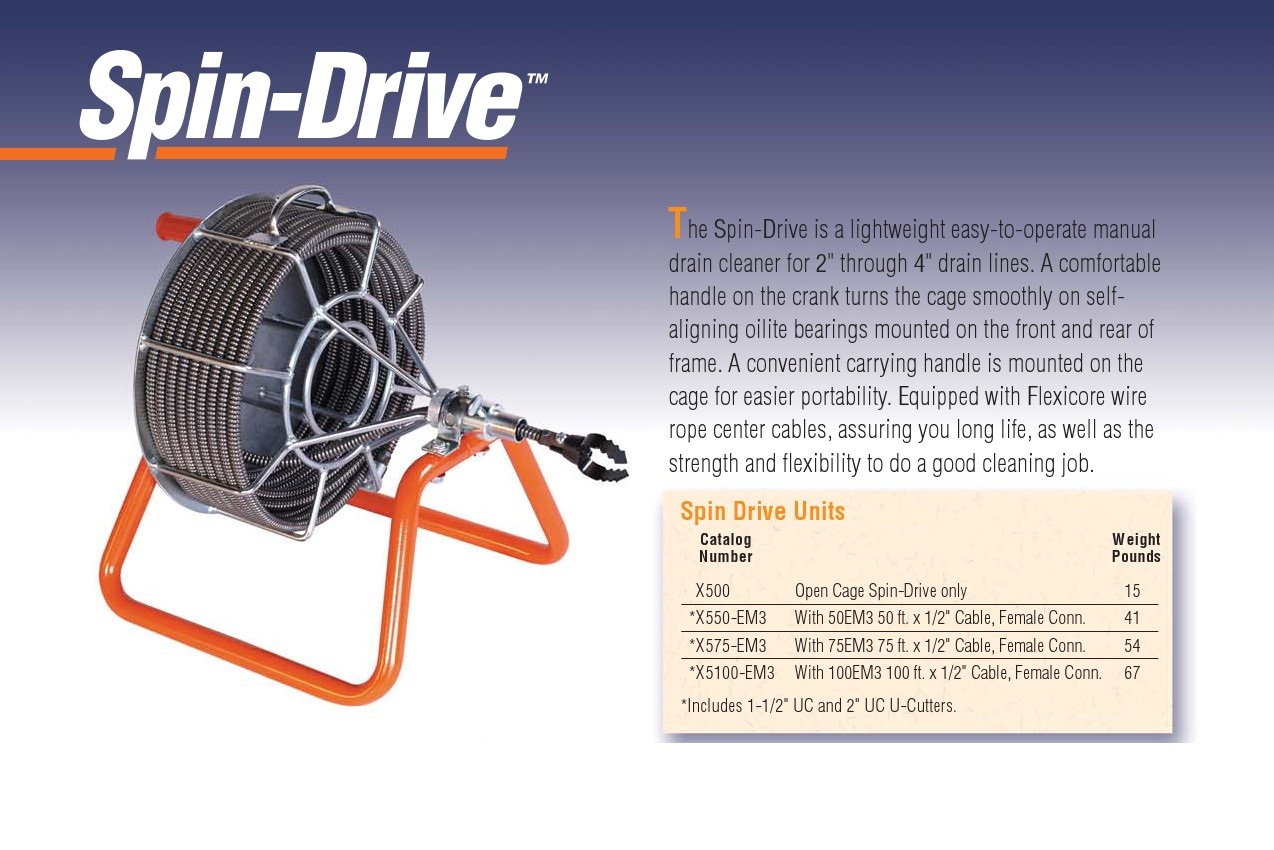

Most popular
manual drain cleaner
for 2 to 4” lines.
Model/Cat. Number:
Spin Drive™ 50′ – X550EM3; 75′ – X575-EM3; 100′ – X5100-EM3
Drive System:
Manually operated; Uses self-aligning oilite bearings
Line Capabilities:
From 50 to 100′ (15.3-30¾m) long; From 2 to 4″ (5-10cm) in diameter
Accessories Included:

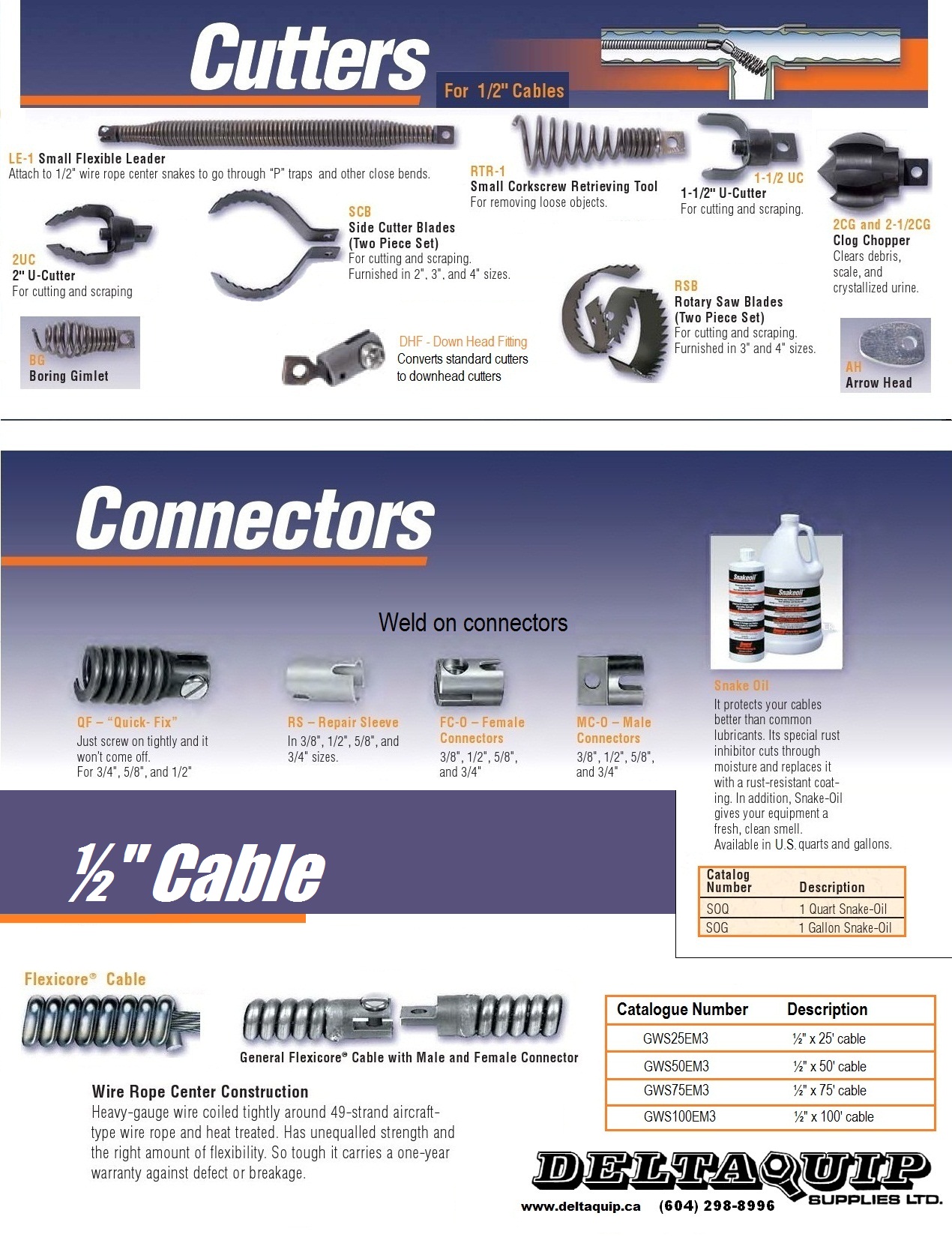

1 each of the 1½UC and 2UC cutters; Retriever ends available
Cable Composition:
Right wound, heat treated coil style with aircraft-type wire rope centre
Cable Lock:
Thumb screw located at drum collar allows cable to be locked for spinning
Cage Style:
Open, to ease inspection, cleaning and drying
Dimensions (LxWxH):
16 x 15 x 17″ (41 x 38 x 43cm)
Shipping Dimensions:
18½ x 17 x 16″ (47 x 43 x 41cm)
Weight:
X550 – 41 lbs.(18.6Kg); X575 – 54 lbs.(24½Kg); X5100 – 67 lbs.(30½Kg)
Shipping Weight:
X550 – 43 lbs.(19½Kg); X575 – 58 lbs.(26.4Kg); X5100 – 71 lbs.(32¼Kg)
Warranty:
1 year parts and labour
Canadian Owned and Operated
