PowrLiner™ Series Line Stripers

PowrLiner™ Series Line Stripers





  Built for precise

consistent striping





  • Entry-level airless piston line striper with basic stencilling capabilities
  • Used for smaller residential and commercial striping projects
  • Stripes both pavement as well as playing fields
  • Easy to use, transport and store
  • Fits in most auto trunks
  • Designed to carry a five US gallon pail of paint
  • Clutch driven pump drive
  • Able to paint up to 106 linear ft./min. (32m)
  • Uses exclusive TR2™ reversible line striping tips (two tips in one)
  • Best and longest warranty in the industry

Model:                                          0290004 – PowrLiner™ 550
Engine:                                         37.7cc 4 stroke
Max Operating Pressure:         3000 PSI (17.2 MPa)
Maximum Delivery:                    .33 US gpm
Hose Included:                            ¼” x 50 feet (15.2m)
Maximum Hose Length:            50 feet
Maximum Tip Size:                     1 gun – .021″ tip
Line Width Range:                       2 – 12″ (5 – 30½cm)
Maximum Spraying Ability:       106 linear ft./min. @ 1.2 MPH (1.9KPH)

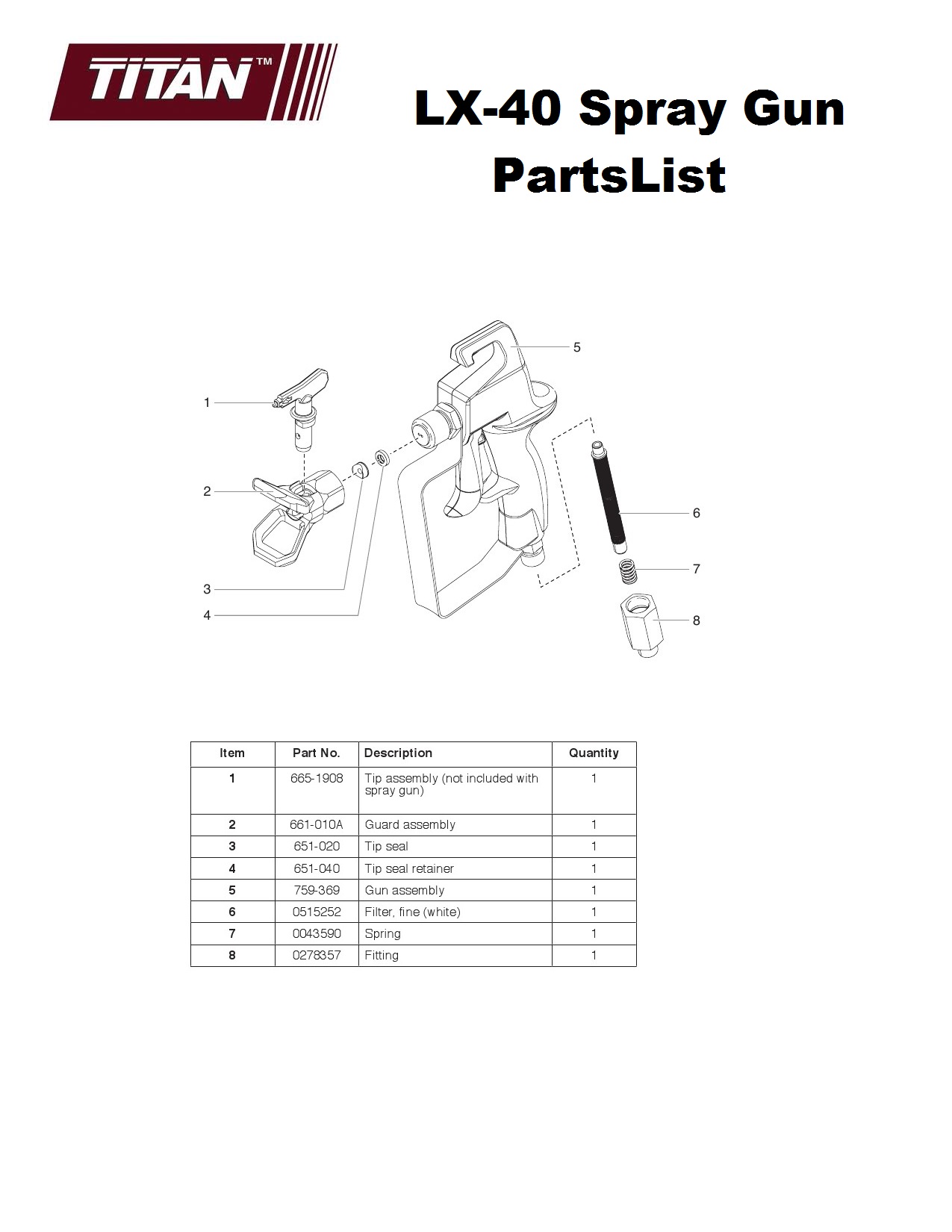

Spray Gun Type:                          LX-40
Tips Supplied:                             1ea 665-1908, SC-6 striping tip, 4″ line by .019″ orifice
Dimensions (LxWxH):                  60 x 31 x 41″ (152 x 79 x 104cm)
Shipping Dimensions:                42 x 29 x 38″ (107 x 74 x 97cm)
Weight:                                          67 lbs. (30Kg)
Shipping Weight:                         75 lbs. (34Kg)
Warranty:                                       4 year mfg defect, 2 year parts
