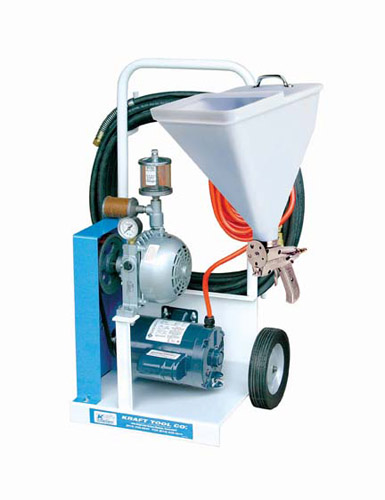

PC500 Texture Machine

The Professional’s

choice for years

Designed for spraying walls, ceilings, fireproofing and stucco
Built-in angle on hopper allows ceiling work without additional attachments
2-finger gun trigger
Five pattern adjustments at gun nozzle with special adjusting nut
Relief valve located on compressor allows adjustment of spray patterns
Trigger stop limits amount of travel, allowing control of material flow
Includes Texture machine, Gun, Hopper and 50 ft or ½” air line with fittings
Minimal amount of oil required to lubricate compressor

Model:                PC500
Motor:                              110 volt, 1 HP capacitor start with manual re-set thermal overload protection
Compressor:                      Rotary vane type
Output:                       6.2 CFM free air @ 25 p.s.i.
Hose:                50 feet (15¼m) x ½”, 200 p.s.i. rated
Wheels:    2 – 8″ x 1¾”; wheel and tire have 100 lb load rating
Hopper Capacity:          2½ U.S. Gallons (9½ litres)
Hopper Angle:           40°
Dimensions:                      15″ long, 19″ wide, 34″ high, (38 x 48½ x 86½cm)
Shipping Dimensions:     18¼ x 19 x 35″ (46½ x 48½ x 89cm)
Weight:                       103 lbs. (46¾Kg)
Shipping Weight:              108 lbs. (49 Kg)
