Minuteman II Mixer

Since 1988, Deltaquip Supplies has provided the user-friendly Minuteman II Mixer. When it hit the market, this unit was…and still is…instrumental in both design and practicality. The exclusive mixing paddles allow the mixer to be used not only for concrete, but also for mortar and other materials.

Sealed direct drive gear box means no exposed gears and no belts to adjust.
Knock down design allows dis-assembly or re-assembly in less than 1 minute.
Compact enough to fit into trunks or hatchbacks of most cars.
Large 12″ wheels ease transport of the Minuteman around job sites and in and out of Rental Yards.
All metal components are finished using high quality paint.
Can be used to mix a multitude of products.
Extremely low maintenance machine.

Model:	Minuteman II
Motor HP/Amps/Volts/RPM:	½ HP, 6.2 Amp, 110 volt, 3350 RPM, single phase, 60 Hz
Drum Capacity:	5 cubic feet (133 litres)
Batch Output:	2½ Cu. Ft. / 275 lbs. (125Kg) / 66½ litres
Discharge Outlet Height:	21″ (53½cm)
Paddle Speed:	55 RPM
Drum Diameter:	24″ (61cm)
Wheels:	10″ (25½cm)
Noise Level:	65 dB(A)
Dimensions (LxWxH):	28 x 52 x 57″ (71 x 132 x 145cm
Shipping Dimensions:	26½ x 26 x 27¼” (67 x 66 x 69cm)
Weight:	120 lbs. (54½Kg)
Shipping Weight:	130 lbs. (59Kg.)

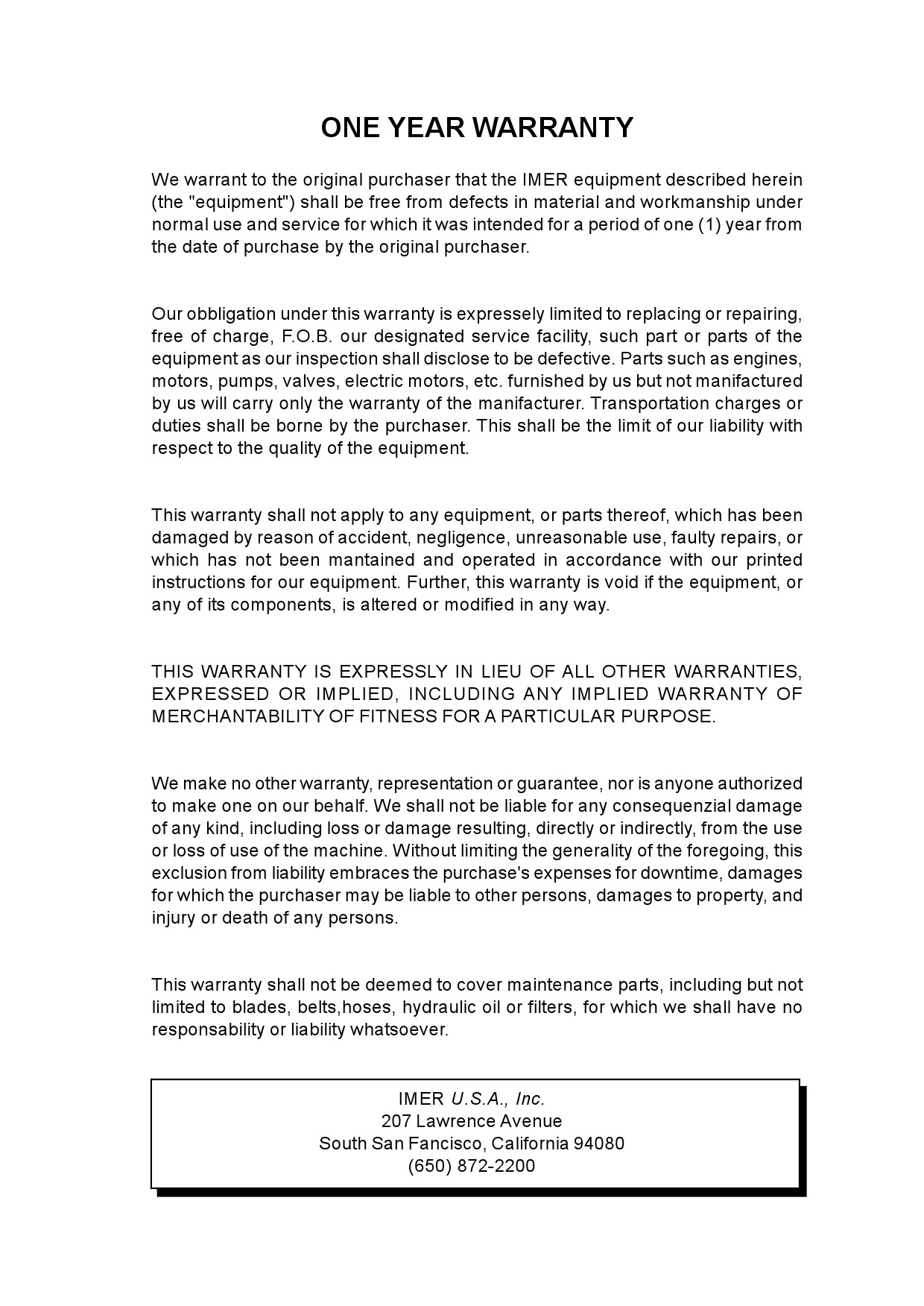

Warranty:	1 year
