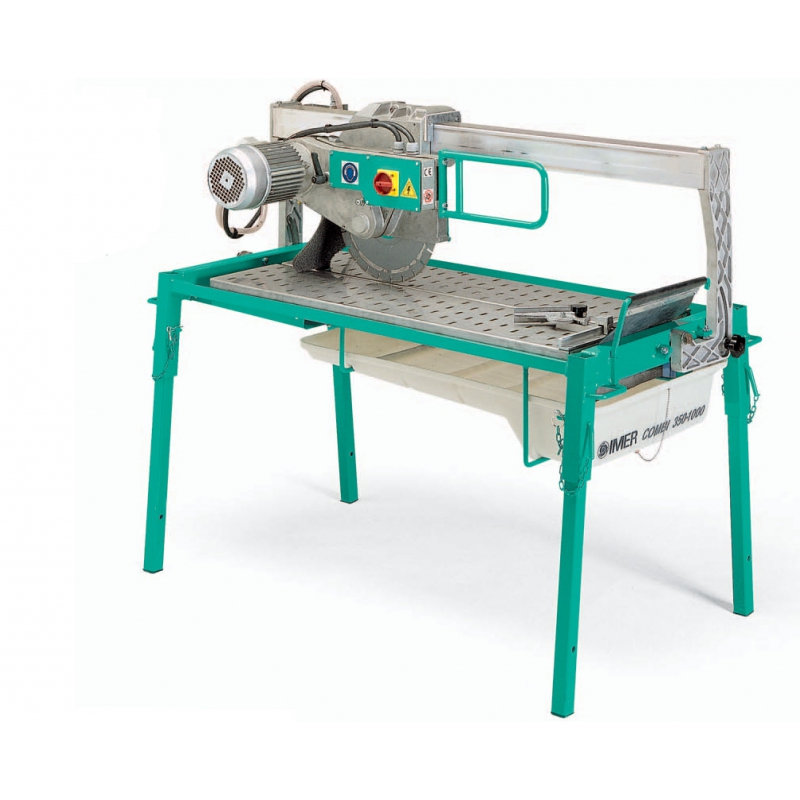

Combi 1000 Saw

Combi 1000 Saw





     Cuts pavers,

marble & granite







  • Made using die cast aluminum fusion technology
  • High torque, low R.P.M. motor
  • Perform flat cuts, 45° miter and anything in between
  • Plunge cuts for door jams or switch boxes
  • 40 inches of cutting length
  • Stainless steel cutting surface
  • Collapsible stand with detachable wheel kit for transport
  • Shatter resistant thermal plastic water pan
  • Electrical system protected from accidental overload
  • Includes stand, cutting guide and protractor
  • Suitable for professionals or contractors

Model: Combi 1000 14″
Motor: 1½ Horsepower, 110 Volt, 15 Ampere, 2800 RPM (220V 3HP available)
Cutting Surface:  20 x 46″ (51 x 117cm)
Blade Speed: 2,150 RPM
Blade Diameter: 14″ (35½cm)
Blade Arbor: 1″ (25mm)
Maximum Cutting Height: 5″ (12¾cm)
Maximum Cutting Length: 36″ (91½cm)
Max Cut Length w/plunge cut:
 40″ (101½cm)
Maximum Cutting Depth: 4¾” (12cm)
Max Cutting Depth @ 45°: 2-1/3″ (6cm)
Noise Level: 78 db(A)
Water Pump Flow: 11.4 liters per minute (3 US Gallons)
Water Pan Capacity: 28 liters (7½ US Gallons)
Dimensions (LxWxH): 63 x 34 x 51″ (160 x 86½ x 130cm)
Shipping Dimensions: 67 x 31 x 37″ (170 x 79 x 94cm)
Weight: 287 lbs (130½Kg)
Shipping Weight: 342 lbs (155½Kg)
Warranty: 1 year
