P-AAA pump

P-AAA pump







Most common tile saw pump.







  • Most commonly used with tile saws, pipe threading machines and welding.
  • Pumps soap solutions, plating solutions and fertilizers where materials are compatible.
  • Oil-filled motor housing with a nitrile radial lip seal on the motor shaft, designed for continuous duty.
  • Commercial, industrial or residential use, where lesser amounts of liquid must be transferred or recirculated.
  • Removable inlet screen for easy cleaning.

Model Number (Catalogue #):        P-AAA (523086)

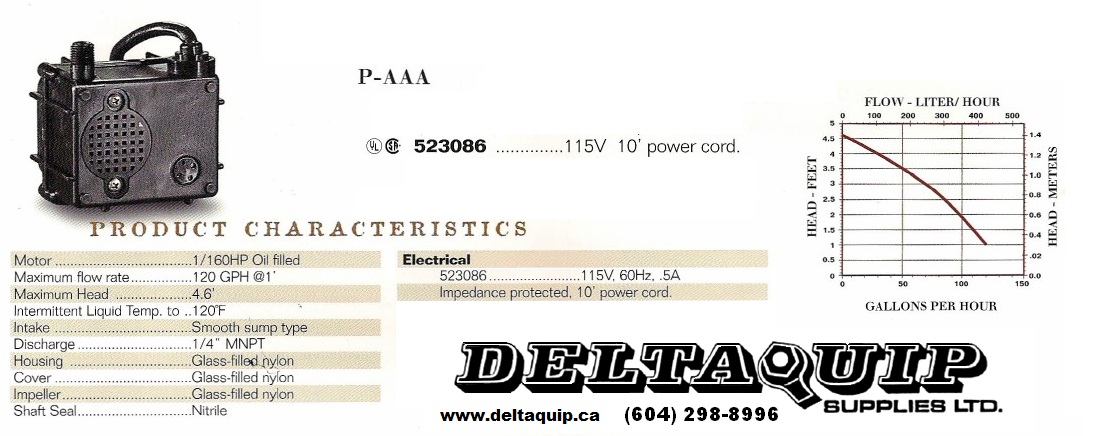

Capacity (Imp. GPH / l/hr):               100 @1’ head  (454 l@.3m)
Discharge:                                          ¼”MNPT (6mm)
Shut-Off (max pump height):         4.6 ft (1.4m)
Maximum Liquid Temperature:     120°F (49°C)
Pressure:                                            2 p.s.i
Motor:                                                  1/600HP, 115V, ½ Amp, 30 Watt, CSA approved
Cord Length:                                      10′ (3m)
Warranty:                                            1 year from Deltaquip’s invoice date
Dimensions (L x W x H):                  3.9 x 3.9 x 3″ (10 x 10 x 7¾cm)
Shipping Dimensions:                      6¼ x 6¼ x 4-3/8″ (16 x 16 x 11cm)
Weight:                                                 2.68 lbs (1.2Kg)
Shipping Weight:                               2.94 lbs (1.33Kg)
