4E-34NT/4E-34NR

• Most commonly used with water displays air conditioners and machine tool coolants.
• Handles a variety of liquids.
• Oil-filled motor housing with a Viton® shaft seal, designed for continuous duty.
• Commercial, industrial or residential use, where lesser amounts of liquid must be transferred or recirculated.
• Removable polypropylene screen for easy cleaning.
• Epoxy coated cast aluminum housing and cover.
• Nylon volute and impeller.
• Model 4E-34NR has a heavy duty motor.

Model Numbers (Catalogue #):     4E-34NT (504186)                                                                                                                                                                           4E-34NR (504203)

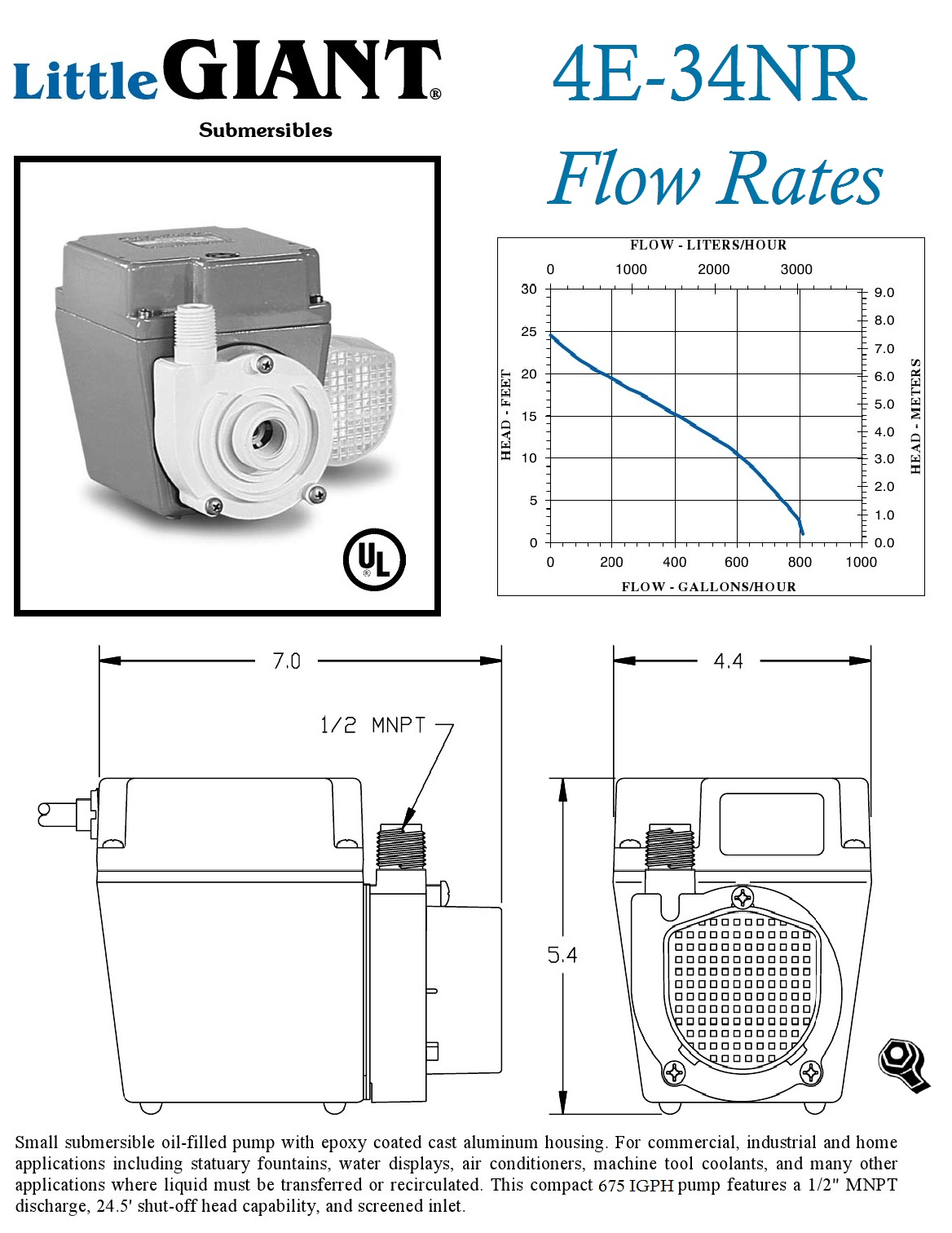

Capacity (Imp. GPH / l/hr):               4E-34NT – 590 @1’ head (2688 l@.3m)
                                                              4E-34NR – 675 @ 1′ head (3066 l@.3m)                                                                           Discharge:                                          ¼”MNPT (6mm)                                                                                                                  Intake:                                                  ¾” (19mm)FNPT                                                                                                           Shut-Off (max pump height):         4E-34NT – 23.1 ft (7m)                                                                                                                                                                            4E-34NR – 24½’ (7.5m)
Maximum Liquid Temperature:     120°F (49°C)
Pressure:                                            4E-34NT – 10 p.s.i                                                                                                                                                                                  4E-34NR – 10.6 p.s.i.
Motor:                                                  1/12HP, 115V, 3½ Amp, 210 Watt, Thermally protected, CSA approved
Cord Length:                                      4E-34NT – 10′ (3m)                                                                                                                                                                                4E-34NR – 6′ (1.8m)
Warranty:                                            1 year from Deltaquip’s invoice date
Dimensions (L x W x H):                  7 x 4½ x 5½” (18 x 11½ x 14cm)
Shipping Dimensions:                      8¾ x 6½ x 6½” (22¼ x 16½ x 16½cm)
Weight:                                                 8½ lbs (.4Kg)
Shipping Weight:                                8¾ lbs (4Kg)
